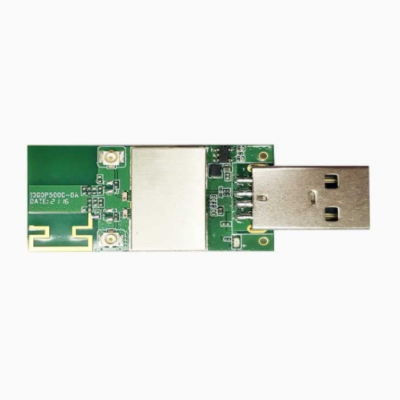

WUBT-239ACN(BT)系列

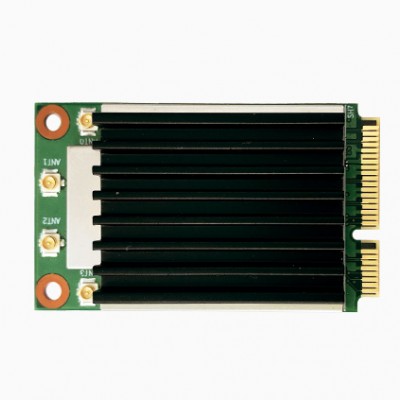

WPEQ-405AX
WPEA-251ACNI(BT)
AP6275SDSR
產品詳情
歡迎來到上海勤諾智能通訊科技有限公司！
- 銷售熱線：15618696870
- 移動版
點擊圖片查看原圖產品價格 面議
最小起訂量：10 片 可售數量：100 片
WIFI快速漫游網卡
￥400.00/片
企業名片
SparkLAN WPEQ-450AC 是一款高度集成的無線 LAN (WLAN)、WiFi 5 802.11ac 4×4 (4T4R) Mini-PCIE 模塊，支持具有多用戶 MIMO（多輸入多輸出）無線的 4 流 802.11ac局域網（WLAN）。它在單芯片 Mini-PCIe 模塊中集成了 4×4 (4T4R) WLAN MAC、基帶和單頻射頻。WPEQ-450AC 通過 Mini-PCIe 為 M2M（機器對機器）連接產品/設備提供了具有成本效益的解決方案，它可以輕松集成到最熟悉的操作系統（Linux）中。
WPEQ-450AC 是一款 Wave2 11ac 無線電，可幫助優質 WiFi 路由器、網關、機頂盒和范圍擴展器支持聯網家庭中的更多設備和要求更高的應用。支持80+80MHz頻道，近距離容量翻倍
適用應用
STANDARD |
||
| WI-FI | IEEE 802.11ac/a/n | |
| Chipset | ·Qualcomm Atheros QCA9984 | |
| Host Interface | WLAN : PCIe | |
RADIO |
||
| Antenna | 4 x IPEX MHF1 connectors | |
| Operating Frequency | 802.11ac/a/n ISM Band | |
|
5.150GHz~5.850GHz *Subject to local regulations |
||
MODULATIONS |
|
| 802.11n | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
| 802.11a | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
| 802.11ac | OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM) |
POWER & SENSITIVITY |
||
| WiFi | Power – TX (± 2dBm) | Sensitivity – RX |
| 11a @ 54Mbps | 17dBm | ≤ -72dBm |
| 11an HT20 @ MCS 7 | 16dBm | ≤ -68dBm |
| 11an HT40 @ MCS 7 | 15dBm | ≤ -66dBm |
| 11ac VHT80 @ MCS 9 | 15dBm | ≤ -56dBm |
| 11ac VHT80+80 @ MCS 9 | 14dBm | ≤-56dBm |
POWER CONSUMPTION |
||
| Continue TX | 2250mA | |
| Continue RX | 750mA | |
ENVIRONMENTAL |
||
| Operating Voltage | DC 3.3V | |
| Temperature Range | -20~ 70°C (Operating) | -20 ~ 90°C (Storing) |
| Humidity(Non-Condensing) | 5~ 90% (Operating) | 5 ~ 90% (Storing) |
SIZE |
||
| Dimension (MM) | 50.80mm(±0.3mm) x 29.85mm(±0.3mm) x 7.8mm(±0.3mm) | |
| Weight | 12.6g | |
SOFTWARE |
|
| Driver | Linux |
| Security | 64/128-bits WEP, WPA, WPA2,WPA3,802.1x |
Miscellaneous |
||
| Warranty Period | 12 Month | |
| HS Code | 8517620050 | |
 |
 |
 |
 |
| USA | EU Region | Japan | Canada |
 |
 |
||
| ROHS | REACH |
